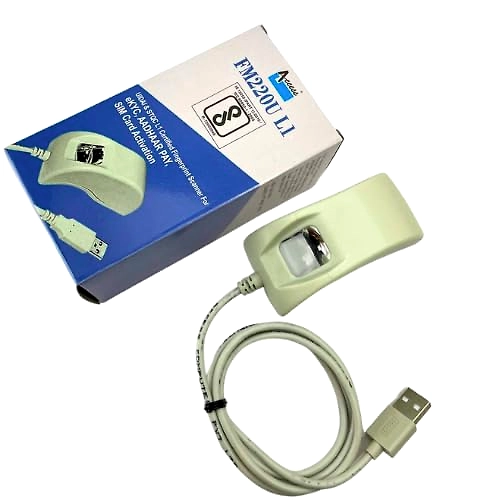

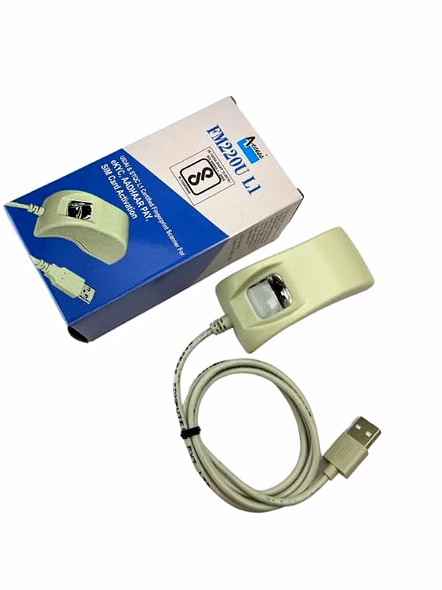

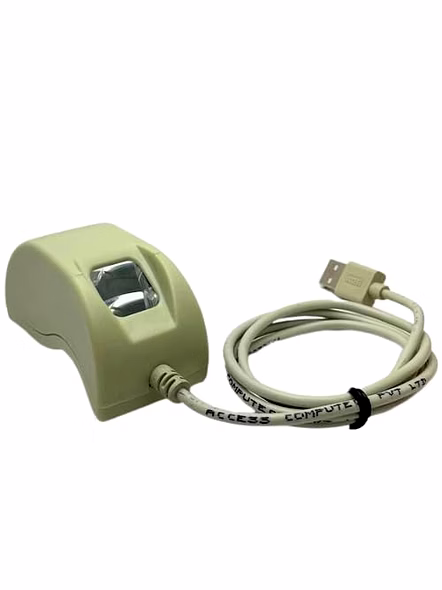

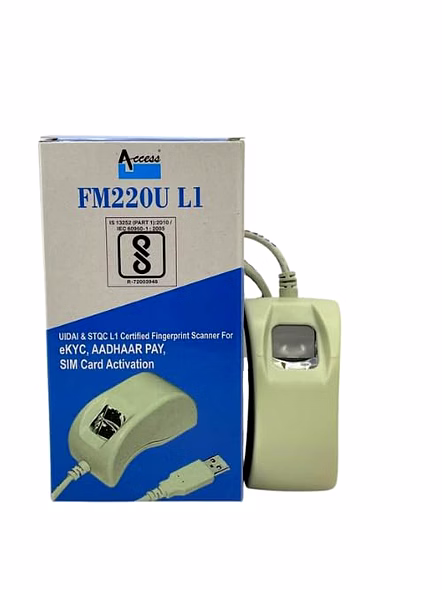

Access FM220U L1 Single Fingerprint Biometric Thumb Scanner | 1 Year RD Service Registration | Highly Secured and Safe Data Capture

About this item

Device security is enhanced with the implementation of Startek L1 compliance for singing and encryption of biometric data. This ensures that the biometric information captured by the device is securely stored and transmitted.

A trusted execution environment provides a secure & isolated environment within the device's hardware or software, helps in protecting sensitive data and ensuring cannot be tampered with or accessed by unauthorized parties.

The secure system design is aligned with the key objectives outlined in the UIDAI RD (Unique Identification Authority of India - Registered Device) service specifications. These objectives include assuring the privacy & security of biometric data, preventing unauthorized access & also maintaining the integrity of the system.

To support the L1 registered fingerprint devices, the API specifications have been revised and updated. These updated specifications ensure seamless integration also compatibility between the registered fingerprint devices and the system, allowing for secure and reliable biometric authentication.

Technical Specifications:

Sensors: Optical

Image Resolution: 500 dpi (H), 500 dpi (V)

Image Capture Area: 13.41 x 16.45(mm); 15.44 x 17.475 (mm) Optional

Platen Area: 16.5×19 (in mm) (HxV)

Scanner Output Image Size/Native: 264×324 pixel (HxV), 304 x 344 pixel (HxV) Optional

Gray Leval: 8 bit/pixel, max 256 grayscales

Image Ratio of Length to Width: 1:1

Scanner Interface Cable: USB compliant cable, Micro USB & Type-C

Power Supply: 1 Watt. Approx. (From USB port)

(160 mA. Approx, Standby: 40mA)

Dimension: 80mm(L) x 41mm(M)x40mm(H)

Weight: 100g (approx)

Distortion: < 1% Meeting PIV specifications

Operating Temperature, ESD: -5 ~ 45 C, 10 KV

MTBF: >100000 operation hours

Scanning Light source: Ultra Red(940mm) capable of supporting more than 600 dpi

ble of supporting more than 600 dpi

API: Image Capture, Enrollment / Template Extraction

Image: Supporting JPEG 2000 lossless, WSQ (Compression 10:1)

Software Platform: Windows 8 and above; Linux with kernel 2.6 (x86); WinCE5.0 (x86 and Arm9); Android 5 and above
